Description

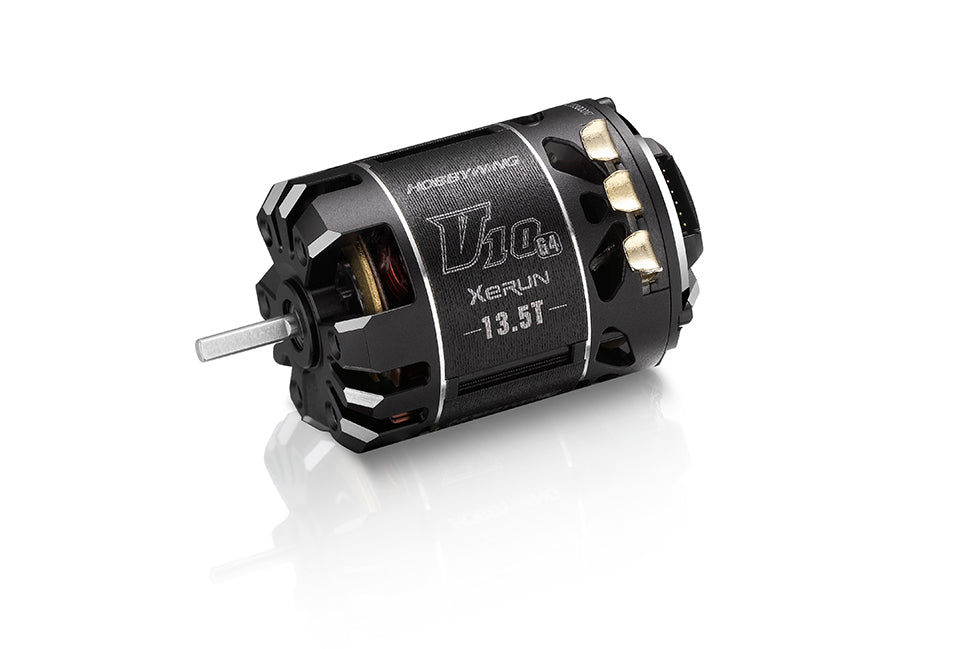

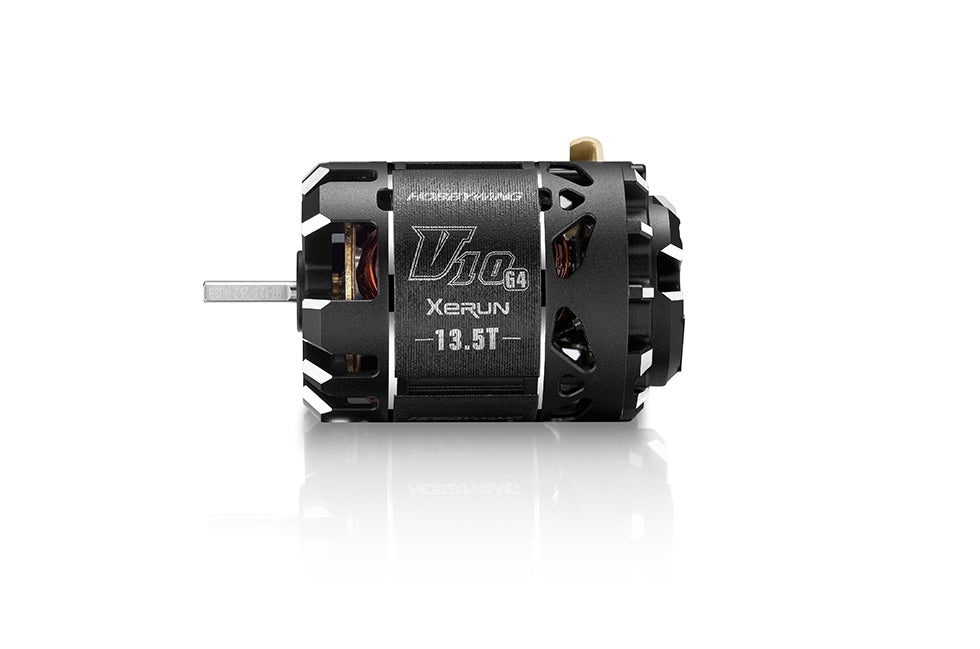

Hobbywing XeRun V10 G4 13.5T Engine - Black
Tested and developed together with World and European champions
Built for the ultra-competitive Stock racing category around the world, the XeRun V10 G4 engine has all the winning formula you need to win a race. The V10 G4 motor has been tested and developed intensively by our factory drivers such as Spencer Rivkin, Jan Ratheisky and Max Machler to give the ultimate performance.
High quality material and advanced design in the industry
-

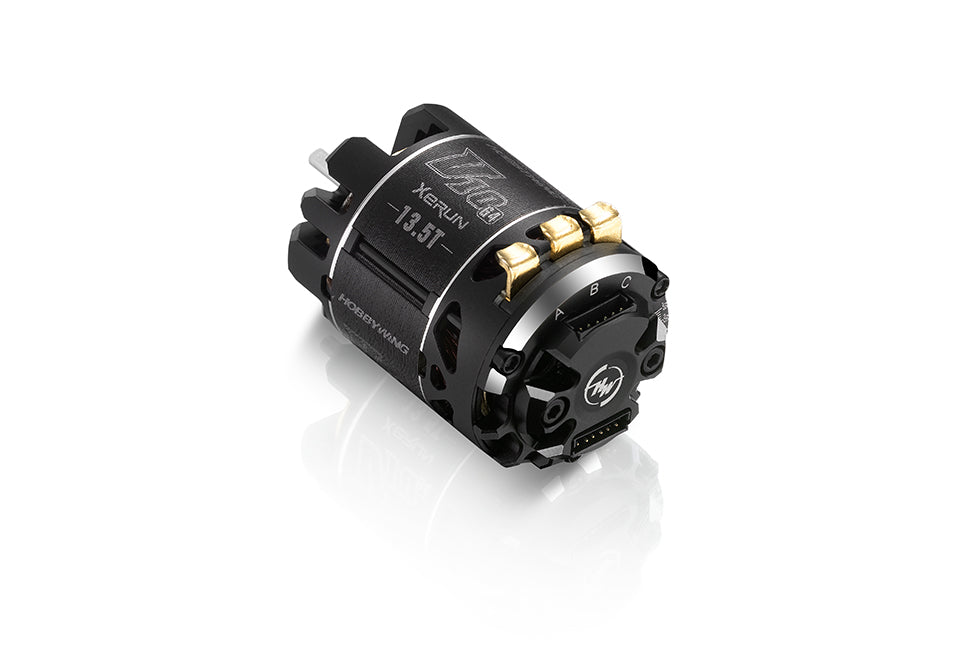

The outlet terminals adopt custom-widened U-shaped gold-plated curved copper strips with extremely low internal resistance, and increase the gap between the copper strips, which makes it easy to weld.
-

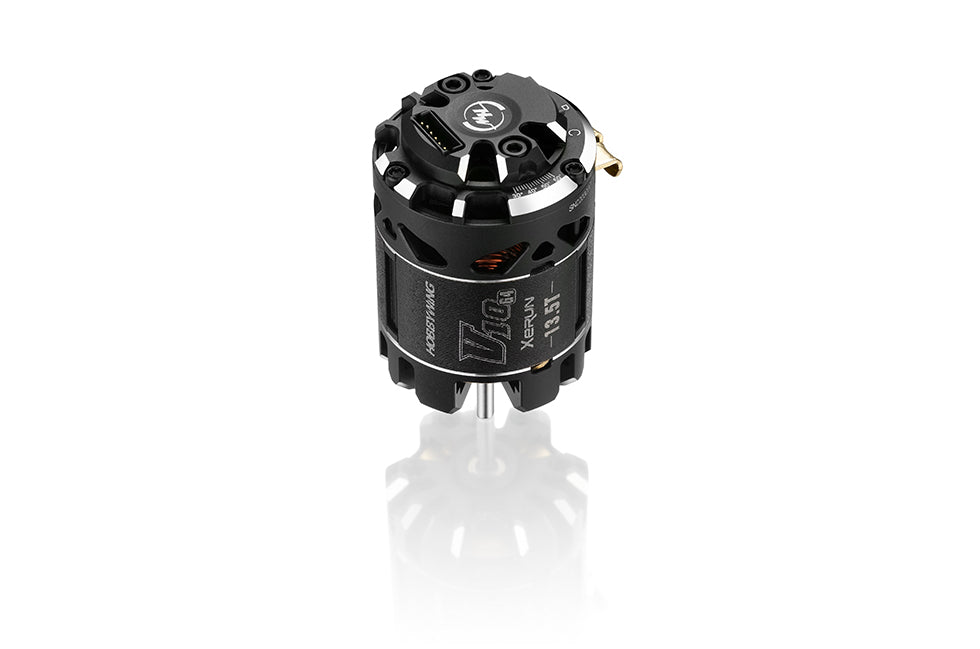

Large open hole structure at the rear of the motor provides excellent heat dissipation effect for endplate components.
-
The use of high-performance and high-quality stator, high temperature resistant wire(200°C), high temperature resistant explosion-proof rotor(180°C), international grade bearings.Optional Rotor is availableThe 13.5T-21.5T motor is equipped with a super magnetic rotor (PN308204445) as standard at the factory. This is the most suitable rotor for "Blinky" Stock racing applications.The optional magnetic rotor (PN 30820416) is better suited for BOOST competition applications, with higher power output and lower motor temperature. for BOOST competition applications, with higher power output and lower motor temperature.
| Product Name | XeRun V10-G4-13.5T | XeRun V10-G4-17.5T | XeRun V10-G4-21.5T | |
| Product Number | 30401140 | 30401141 | 30401142 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/10 th BL SD 2 |
1/10 th BL SD 2 |
1/10 th BL SD 2 |
| Relevant Parameters | KV Rating LiPo Cells No-load Current(A) |
3950KV 2-3S 4.5A |
3020KV 2-3S 3.7A |
2500KV 2-3S 3.0A |
| Size & Weight | OD(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing |
35.8 51.4 3,175 149g D9*D4*t4 D8*D3*t4 |
35.8 51.4 3,175 149g D9*D4*t4 D8*D3*t4 |
35.8 51.4 3,175 148g D9*D4*t4 D8*D3*t4 |
| Other Parameters | timing Applications |
30-60 Degrees(Adjustable) 1/10 th Stock Class Racing |
30-60 Degrees(Adjustable) 1/10 th Stock Class Racing |
30-6 |
