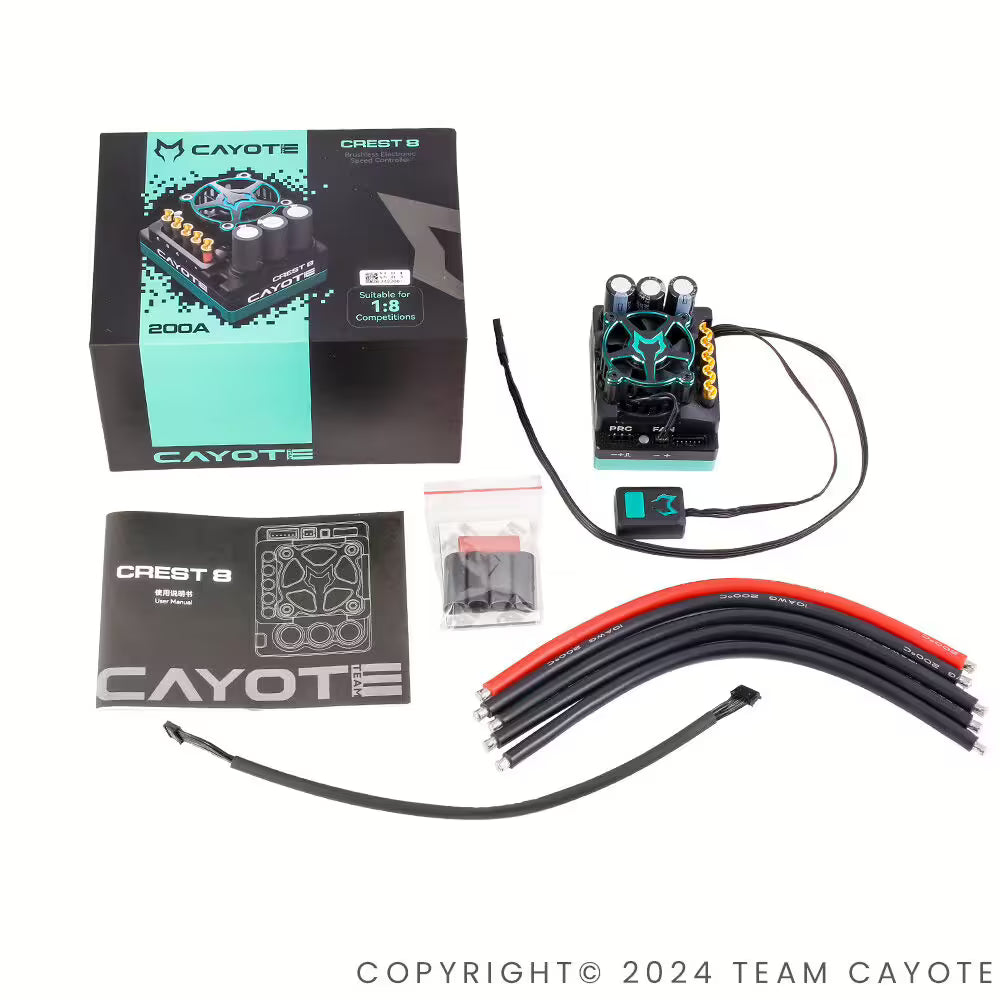

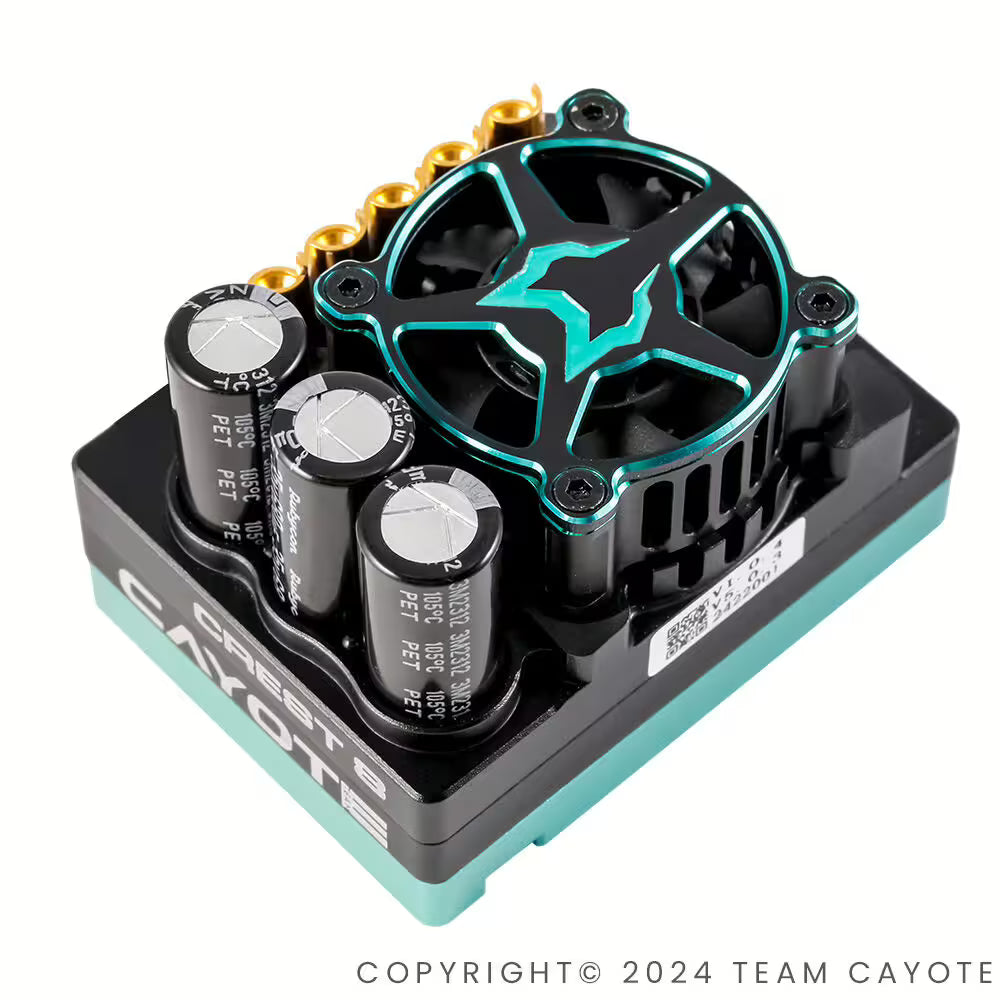

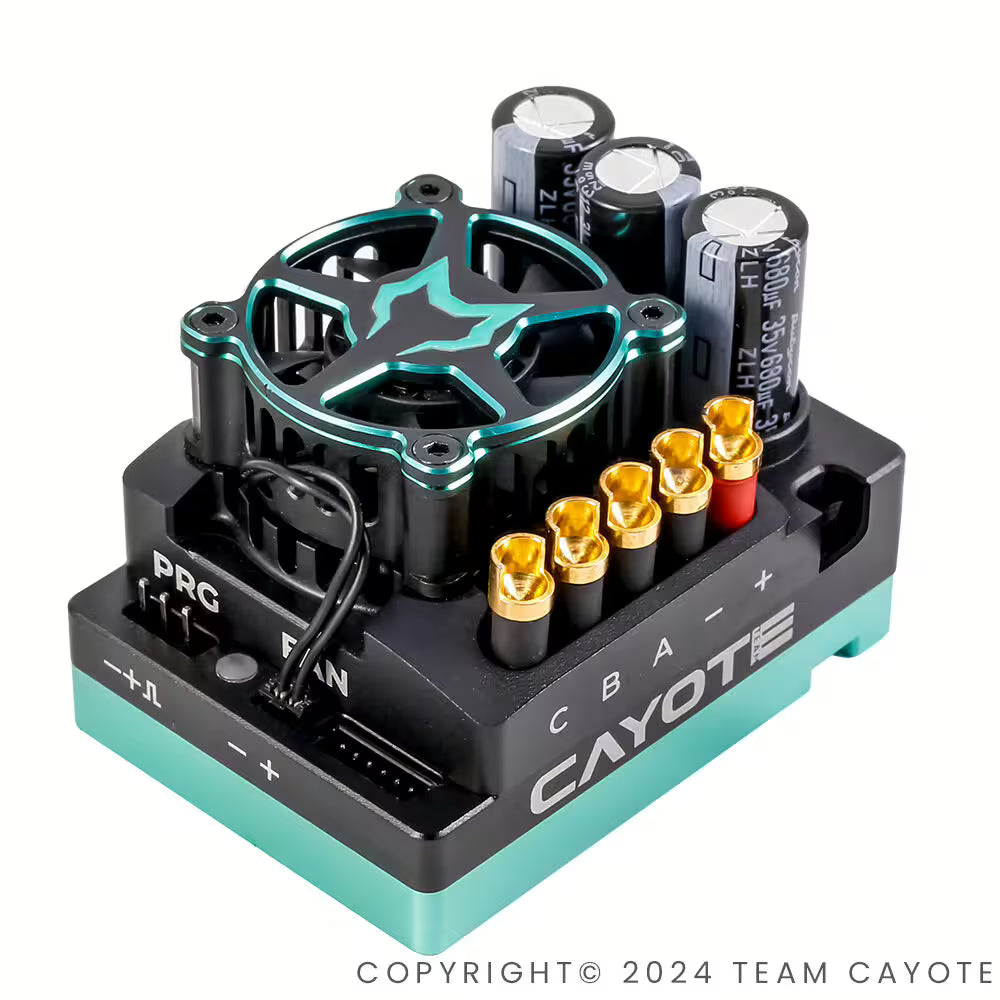

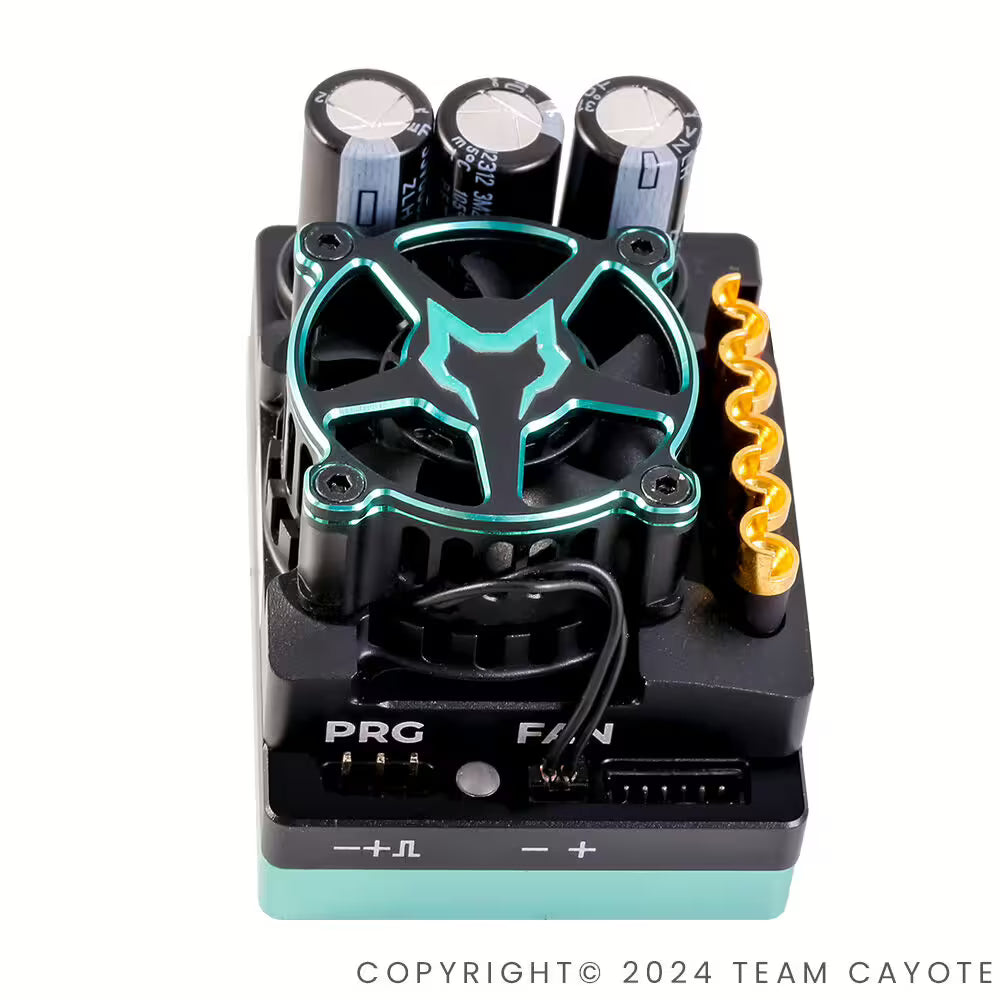

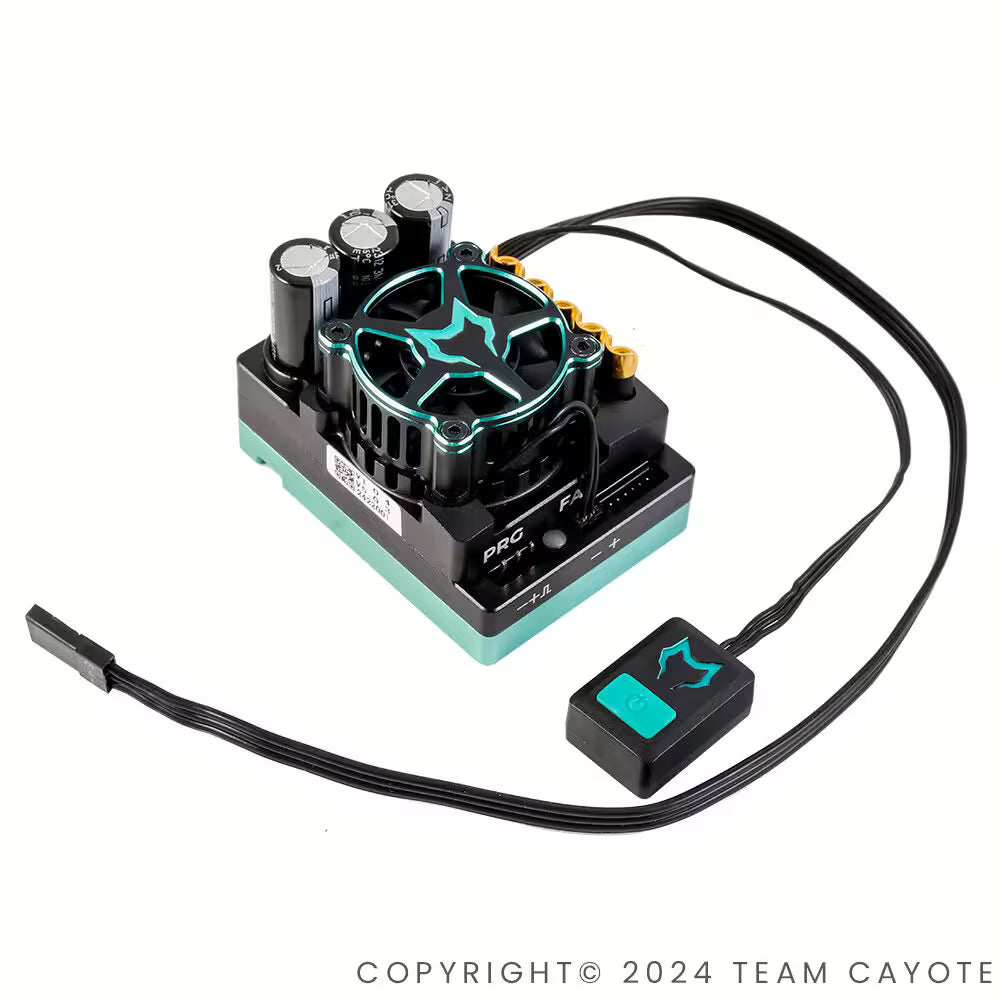

Cayote Racing CREST 8 EVO – 1:8 200A speed controller (ESC)

The Cayote CREST 8 EVO is a high-performance speed controller designed for use in 1:8 electric racing cars. Thanks to state-of-the-art technology, excellent power transfer, and intelligent control, this ESC ensures maximum performance on any surface. It's ideal in combination with Cayote motors and batteries for a no-compromise power unit.

Product highlights

• Fully adjustable boost & turbo timing functions
• Offline data recording for performance analysis
• Over 33 adjustable parameters for precise tuning
• Support for different driving modes
• Stable cooling system with 30 mm fan
• Compatible with programming box, Bluetooth & app

Technical data

• Scale: 1/8
• Mode: Sensor / Sensorless
• Continuous current: 200 A
• Peak current: 1080 A
• Battery: 2-4S LiPo
• BEC output voltage: 6.0 / 7.4 V
• BEC output current: 8 A constant / 12 A peak
• Firmware Upgrade: Supported
• Data recording: Extreme value + real-time data
• Dimensions: 56.8 × 41.6 × 40 mm
• Weight: 122 g

compatibility

• Motor: 4268/4274 ≤ 3000KV (with 4S LiPo)
• Vehicles: 1/8 Buggy, Truggy, Short Course Truck, Big Foot, etc.

Cabling & Cooling

• Output wires: 3 × 10AWG (180 mm, black)
• Input wires: 1 × Red / 1 × Black – 13AWG (180 mm)
• Fan: 30 × 30 × 10mm, 5-8.4V BEC

ESC programming

• Compatible with Xlink program box
• BTune connection (optional)
• App control (optional)
